APG Machine & Mold

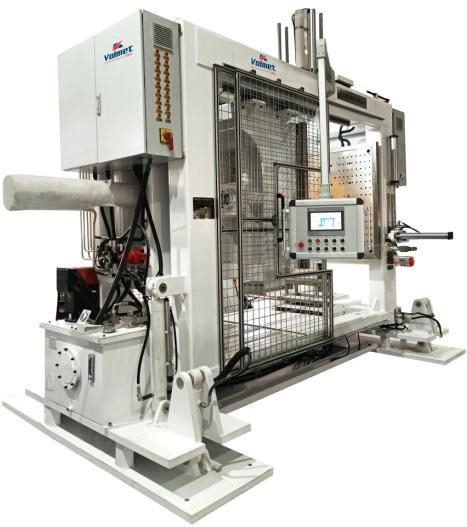

AVOL-1010 Fully Automatic APG clamping machine

AVOL-1010 Fully Automatic APG clamping machine

Features: AVOL-1010-25 Fully automatic APG machine is an advanced, automatic and high-efficiency press machine, with an automatic control system, one-button run machine, Automatic close mold, injection, tilting machine, hold pressure and open mold.

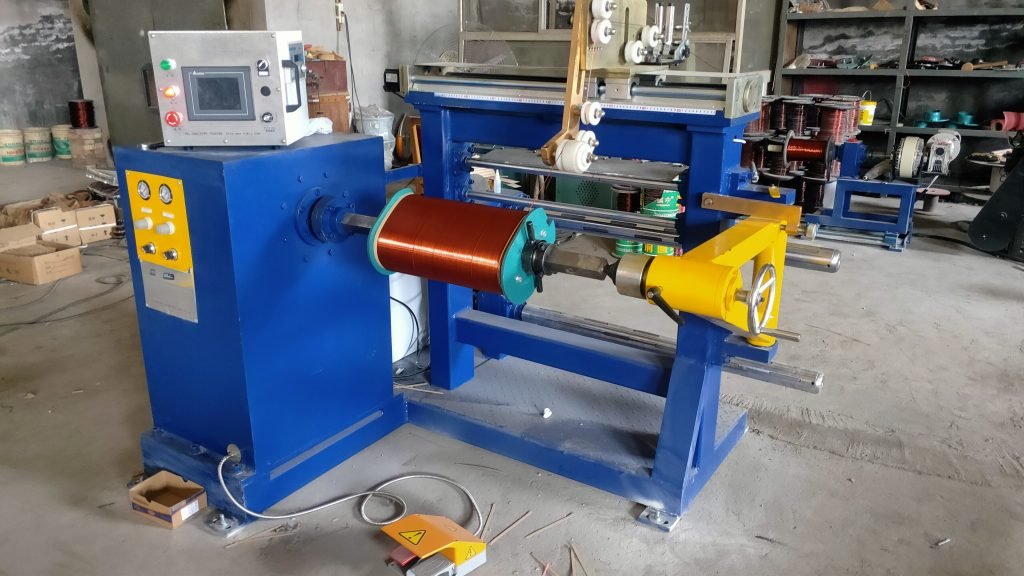

Automatic wire laying winding machine

Automatic wire laying winding machine

Features: The Automatic wire laying machines drive the wire laying actuators with servo motors and stepper motors, and are equipped with a PLC programmable control system. This allows for precise adjustment of wire laying speed, spacing, and direction. They can adapt to the wire laying needs of different wire diameters (from 0.05mm enameled wire to tens of millimeters of power cable) and different specifications of workpieces. They feature high automation, high wire laying accuracy, stable operation, and ease of use. They effectively solve problems such as uneven spacing, overlapping wires, skipped wires, and loose wiring that easily occur with manual wire laying, while significantly reducing labor costs and improving product consistency. They are a key supporting equipment for the large-scale, standardized production of electrical components.

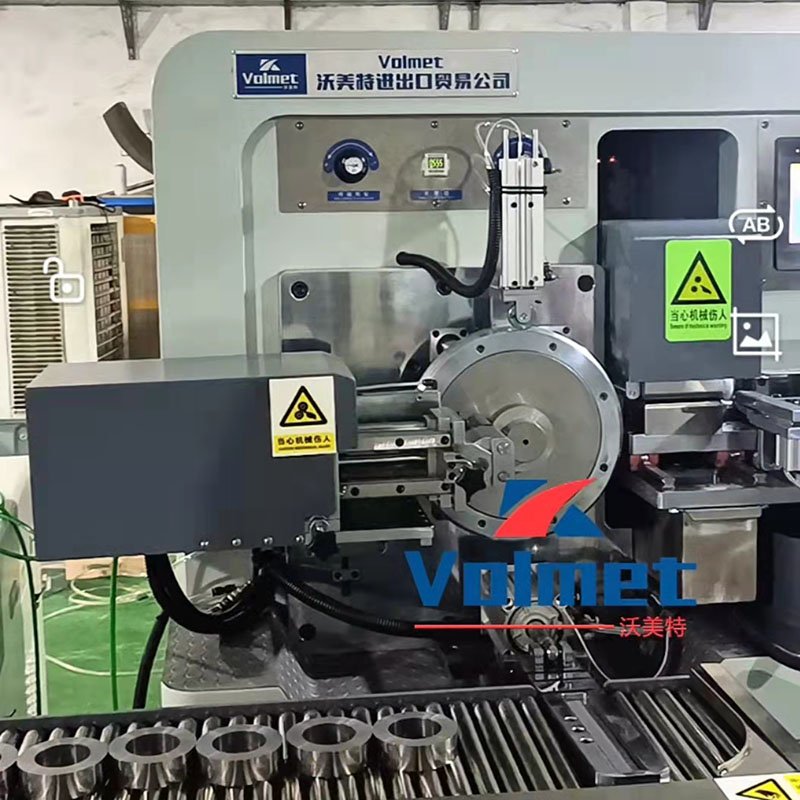

AVOL-250C-80 Fully Automatic Core Winding Machine

AVOL-250C-80 Fully Automatic Core Winding Machine

Application:Used for winding toroidal core made from grain oriented steel or non-oriented steel for small transformers, transmitters, instrument and voltage transformers, chokes, and variable voltage transformers.

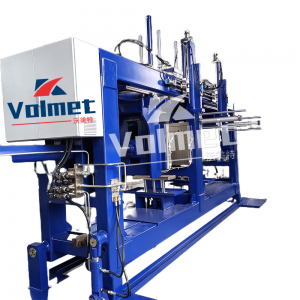

Dvol-8060-25 Double Station Apg Injection Machine

Features: Double clamping plate, high efficiency, used for casting insulators, wall bushing and simple products The DVOL-8060-25 series APG epoxy machine is made up of: -1. APG clamping machine frame (Q235# 10mm steel, machine more stable; stably;release welding internal stress by heat treatment) -2. Power cabinet (Adopt reliable and general electrical elements) -3. Hydraulic power pack (independent production, offers customized service)

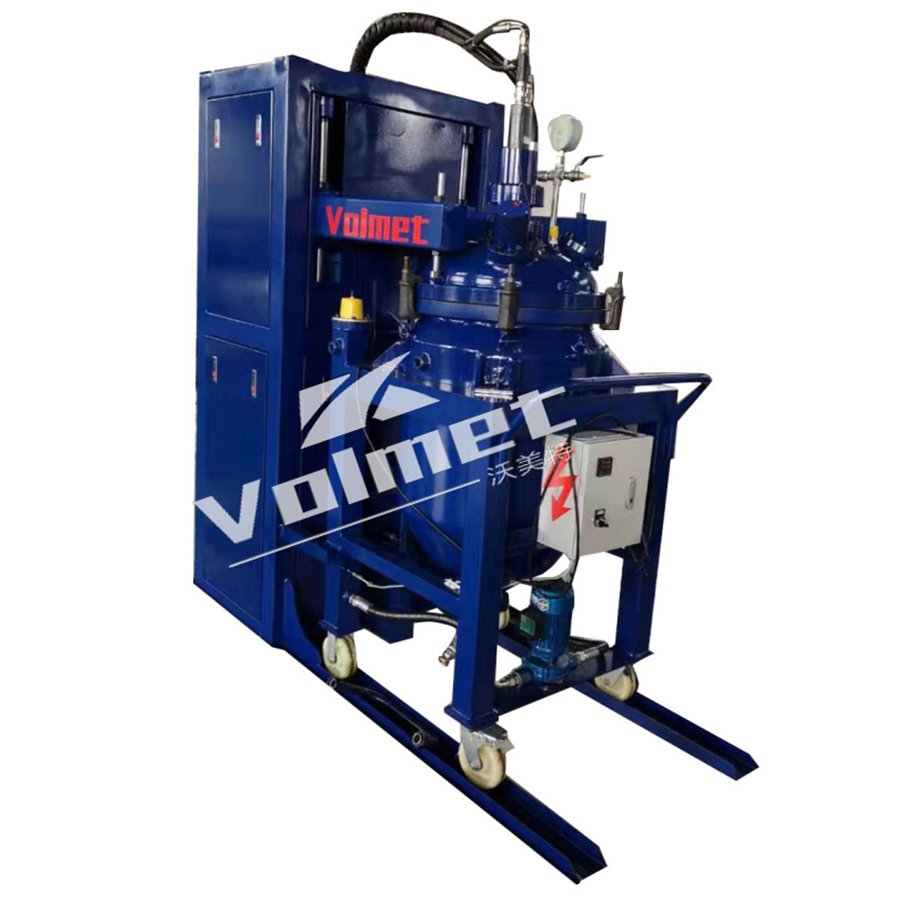

VOL-100L Epoxy Resin Mixing Machine

Short Description: Fully automatic mixing plant with touch screen: Automatic cover lid,start mixing and vacuumize,automatic open lid,stop mixing.

VOL-8060-25 Standard type APG press machine

Features: Double clamping plate, high efficiency, used for casting insulators, wall bushing and simple products The DVOL-8060-25 series APG epoxy machine is made up of: -1. APG clamping machine frame (Q235# 10mm steel, machine more release welding internal stress by heat treatment) -2.Power cabinet (Adopt realiable and general electrical elements) -3.Hydraulic power pack (independent production,offer customzied service)

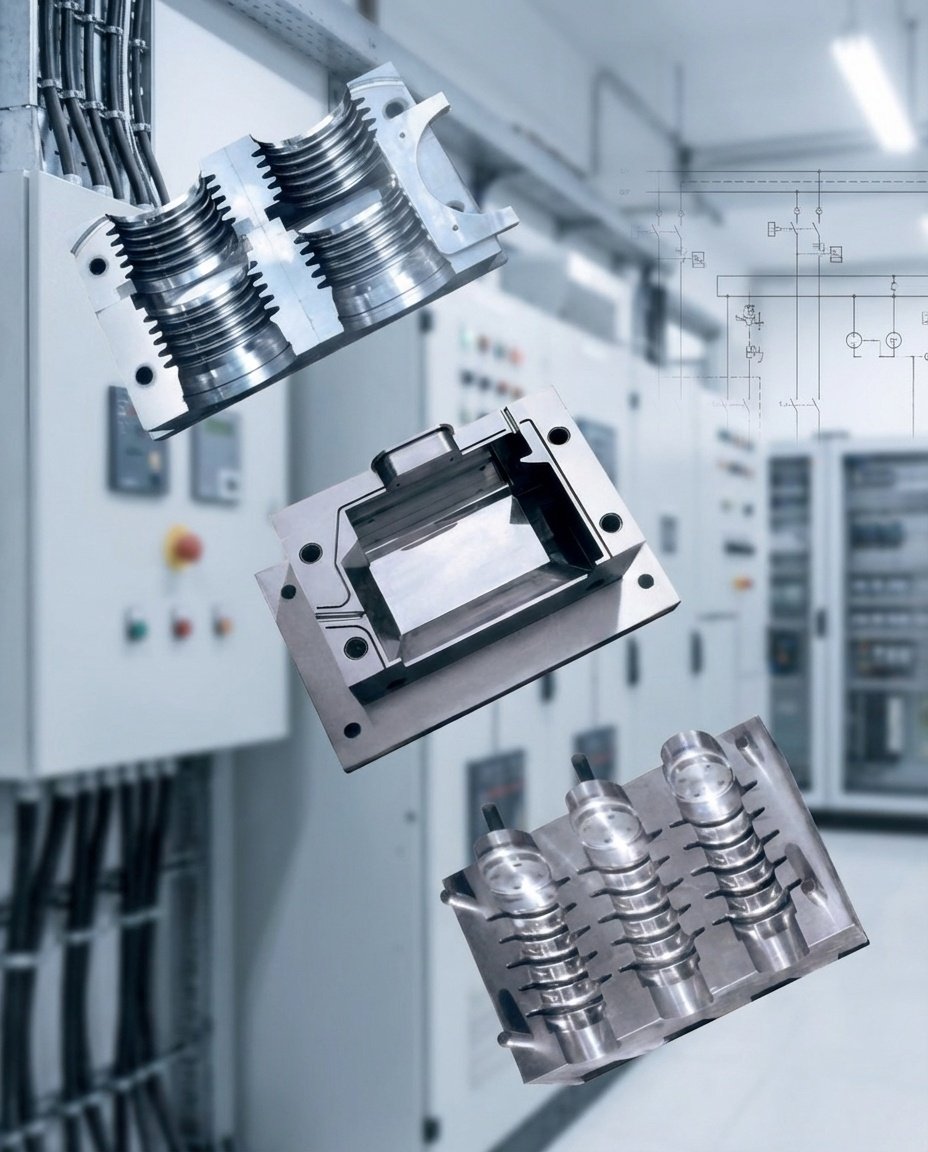

APG Molds

Current Transformer APG Mold 1 Cavity Epoxy Resin Bushing APG Mold Epoxy Resin Insulator APG Mold Potential Transformer APG Mold 1 Cavity

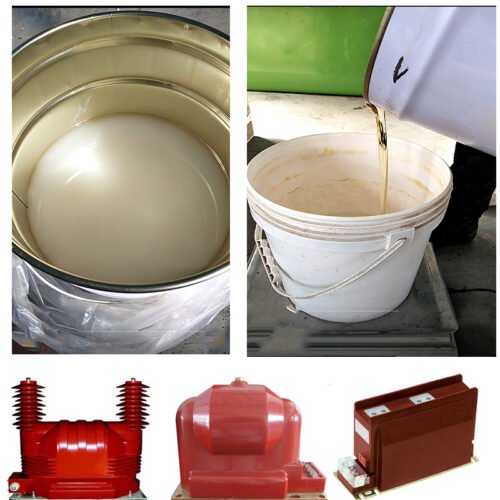

Injection Epoxy Resin VOE-9216D/VOH-9216D

Applications: We supply both indoor and outdoor type epoxy resin, hardener, silica powder,pigment. As the raw material for casting current transformer, bushing,insulators.etc.

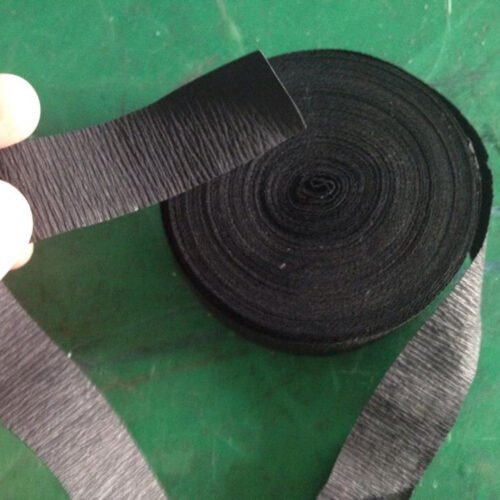

Raw Materials

Applications: Insulation paper and tapes mainly used for bend current transformer and voltage transformer cores for insulating purpose.
